DC Machines
DC-machine operation, commutation, transients, steady-state behavior and position control.
Author

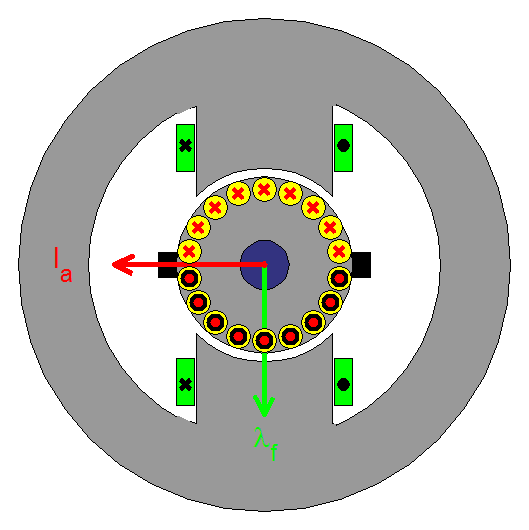

1 Schematic diagram of a dc machine (GIF)
Description: The action of the commutator is to produce a fixed spatial distribution of current directions in the armature conductors independent of shaft rotation. The field created by these currents (armature reaction) is horizontally directed and is represented by the space vector I a. The field established by the excitation of the stator poles is directed along the vertical axis and is represented by the space vector λ f. The electromagnetic torque may be expressed as T e = k( I a x λ f ).
Schematic diagram of a dc machine

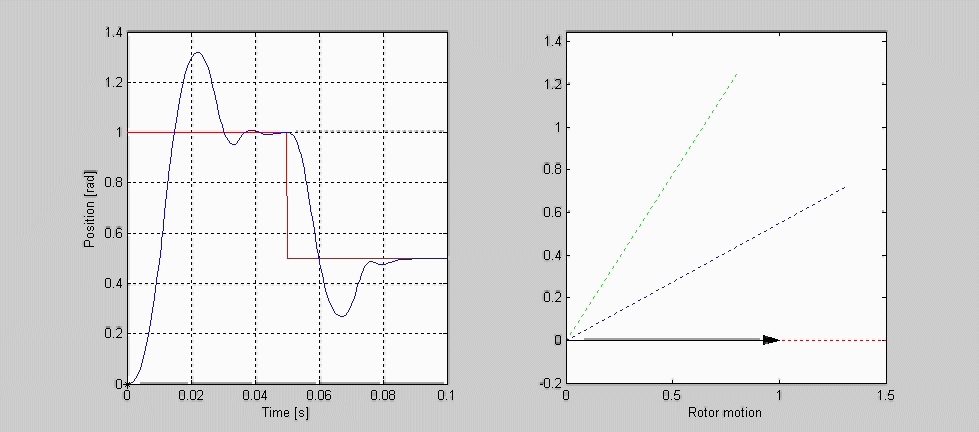

2 Position control of a dc motor (GIF)
Description: The block diagram representation of the positional control system is shown below. The dc motor is initially at standstill and position set a 0 radian when an initial step of 1 radian is imposed followed later by a reduced step of 0.5 rad. A step mechanical load is also applied at a specified time. The position transients are illustrated.
Position control of a dc motor
3 DC machine (GeoGebra)
Description: Explore dc machine.
Loading animation…
4 DC machine: commutator action (GeoGebra)
Description: Explore dc machine: commutator action.
Loading animation…
5 DC Motor Transients (GeoGebra)
Description: Explore dc motor transients.
Loading animation…
6 DC machine steady-state characteristics (GeoGebra)
Description: Explore dc machine steady-state characteristics.
Loading animation…
7 Position control of dc motor (GeoGebra)
Description: Explore position control of dc motor.
Loading animation…
Position controller
Motor response
Control structure
